:: Arihant Plastics

Products

Acrylic pipe Extruded 2Mtrs Length

Smaller Acrylic Pipes are available in the following outer diametre and inner diametre combinations, the standard length being 1 metre. Each of the available combinations has a different rate value which is then factored on a per metre basis.

Sl. No.	Size - Outer Dia (in mm)	Size - Inner Dia (in mm)	Standard Length
1	5.00	2.75	2 Meter
2	6.00	3.00	2 Meter
3	8.00	4.00	2 Meter
4	10.00	6.00	2 Meter
5	12.00	8.00	2 Meter
6	13.00	10.00	2 Meter
7	15.00	11.00	2 Meter
8	18.00	12.00	2 Meter
9	20.00	15.50	2 Meter
10	25.00	20.00	2 Meter
11	30.00	20.00	2 Meter
12	30.00	25.00	2 Meter
13	32.00	25.00	2 Meter
14	35.00	25.00	2 Meter
15	35.00	30.00	2 Meter
16	38.00	25.00	2 Meter
17	38.00	30.00	2 Meter
18	38.00	32.00	2 Meter
19	40.00	25.00	2 Meter
20	40.00	30.00	2 Meter
21	40.00	32.00	2 Meter
22	43.00	33.00	2 Meter
23	40.00	34.50	2 Meter
24	45.00	39.20	2 Meter
25	50.00	40.00	2 Meter
26	50.00	44.00	2 Meter
27	51.00	46.00	2 Meter
28	55.00	49.00	2 Meter
29	60.00	50.00	2 Meter
30	60.00	54.00	2 Meter
31	63.00	58.60	2 Meter
32	70.00	64.00	2 Meter
33	75.00	65.00	2 Meter
34	75.00	69.00	2 Meter
32	90.00	84.00	2 Meter
33	100.00	90.00	2 Meter
34	100.00	94.00	2 Meter
35	105.00	95.00	2 Meter
36	110.00	100.00	2 Meter
37	110.00	104.00	2 Meter
38	115.00	105.00	2 Meter
39	115.00	109.00	2 Meter
40	120.00	114.00	2 Meter
41	125.00	119.00	2 Meter

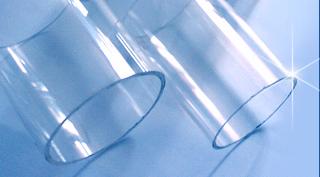

Acrylic Pipe Cast 600mm Length

Larger Acrylic Pipes are available in outer diametre sizes of 70, 75, 82, 90, 95, 100, 108, 110, 115, 120, 125, 130, 140, 150, 160, 190, 200, 250, or 310 mm with wall thickness values of 3, 4 or 5mm. Special sizes with outer diametre values 500, 600, or 650 mm and wall thickness values ranging anywhere from 6 mm to 10 mm can also be supplied on clients' request. The rates are calculated per 600 mm length depending upon the O. D. size, the wall thickness of the specific pipe. We also offer special rates on per metre length basis for pipes with outer diametre values of 75 and 100 mm.

Sl. No.	Size In mm O.D.	ID (Wall Thickness of 3mm)	ID (Wall Thickness of 4mm)	ID (Wall Thickness of 5mm)
1	70	64	62	60
2	75	69	67	65
3	82	76	74	72
4	90	84	82	80
5	95	89	87	85
6	100	94	92	90
7	108	102	100	98
8	110	104	102	100
9	115	109	107	105
10	120	114	112	110
11	125	119	117	115
12	130	124	122	120
13	140	134	132	130
14	150	144	142	140
15	160	154	152	150
16	165	---	157	155
17	180	---	172	170
18	190	---	182	180
19	200	---	192	190
20	250	---	242	240
21	300	---	292	290
22	310	---	302	300
23	343	---	---	333
24	360	---	---	350
25	375	---	---	365
26	400	---	---	390
27	450	---	---	440
28	500	---	---	490

Top

Acrylic Square Pipes

Sl. No.	Size in mm	Size in Meter
1	20*20	2 Mtrs
2	25*25	2 Mtrs
3	30*30	2 Mtrs

Top

Polycarbonate Clear Pipe 2mtr Length

Sl. No.	Out Dia in mm	Inner Dia in mm	Standard Length
1	06	10	2 Mtrs
2	08	12	2 Mtrs
3	012	008	2 Mtrs
4	038	032	2 Mtrs
5	050	044	2 Mtrs
6	060	054	2 Mtrs
7	063	058	2 Mtrs
8	12	18	2 Mtrs
9	15.5	20	2 Mtrs
10	20	25	2 Mtrs
11	32	38	2 Mtrs
12	34.5	40	2 Mtrs
13	44	50	2 Mtrs
14	54	60	2 Mtrs
15	58	63	2 Mtrs
16	72	76 (040)	2 Mtrs
17	100	96 (040)	2 Mtrs
18	150	146 (040)	2 Mtrs
19	166	162 (Clear)	2 Mtrs
20	166	162 (040)	2 Mtrs
21	200	194 (040)	2 Mtrs

Top

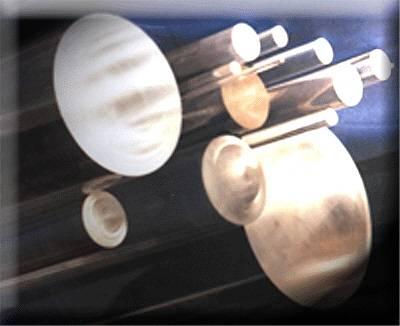

Acrylic Rods

Acrylic Rods are available in 5.00, 6.00, 8.00, 10.00, 12.50, 15.00, 18.00, 20.00, or 25.00 mm sizes, the standard length being 1 m. Rates are calculated on a per metre basis depending on the size required. We also deal with imported acrylic rods of lengths ranging from 1 to 2 feet with diametre value in the range 5 to 600 mm.

Sl. No.	Size in mm	Size in Feet	Size in Meter
1	4mm	---	1000mm
2	5mm	---	1000mm
3	6mm	---	1000mm
4	8mm	300mm	1000mm
5	9mm	---	1000mm
6	10mm	300mm	1000mm
7	12mm	300mm	1000mm
8	15mm	300mm	1000mm
9	18mm	300mm	1000mm
10	20mm	300mm	1000mm
11	25mm	300mm	1000mm
12	30mm	300mm	1000mm
13	32mm	300mm	1000mm
14	35mm	300mm	1000mm
15	38mm	300mm	1000mm
16	40mm	300mm	1000mm
17	45mm	300mm	1000mm
18	48mm	300mm	---
19	50mm	300mm	1000mm
20	55mm	---	1000mm
21	60mm	300mm	1000mm
22	65mm	300mm	1000mm
23	70mm	300mm	1000mm
24	75mm	600mm	1000mm
25	80mm	300mm	1000mm
26	90mm	300mm	1000mm
27	95mm	600mm	1000mm
28	100mm	300mm	1000mm
29	105mm	600mm	1000mm
30	110mm	600mm	1000mm
31	115mm	600mm	1000mm
32	125mm	600mm	1000mm
33	130mm	600mm	1000mm
34	150mm	---	1000mm
35	175mm	---	1000mm
36	180mm	---	1000mm
37	200mm	---	1000mm

Top

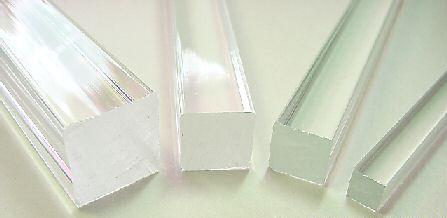

Acrylic Square Rods

Sl. No.	Size in mm	Size in Feet
1	12mm	300mm
2	15mm	300mm
3	16mm	300mm
4	20mm	300mm
5	25mm	300mm
6	30mm	300mm
7	32mm	300mm
8	35mm	300mm
9	38mm	300mm
10	40mm	300mm
11	45mm	300mm
12	50mm	300mm
13	75mm	300mm
14	80mm	600mm
15	85mm	600mm
16	90mm	600mm
17	95mm	600mm
18	100mm	600mm

Top

Acrylic Bubble Rods

Sl. No.	Size in mm	Size in Meter
1	18mm	1000mm
2	20mm	1000mm
3	25mm	1000mm
4	30mm	1000mm
5	32mm	1000mm
6	38mm	1000mm
7	40mm	1000mm
8	50mm	1000mm
9	60mm	1000mm
10	75mm	1000mm
11	90mm	1000mm

Top

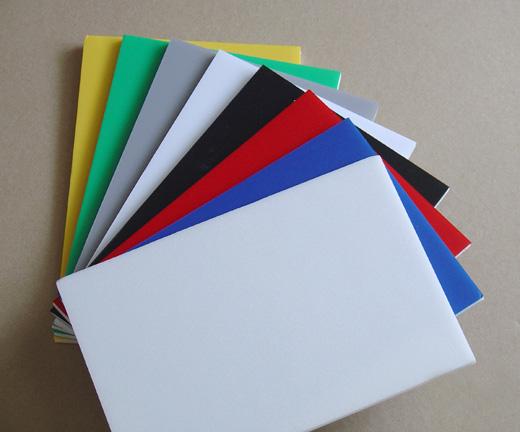

P. V. C. Foam Boards (Sun- Board)

P. V. C. Foam Boards are resistant to chemicals, waterproof, termite proof and are rot & sag free. Being made of a fire retardant material foam boards have a superior finish on both sides and are maintenance free. Foam Boards are dimensionally stable i.e., they do not warp or swell and lend themselves to thermoforming. Further, a foam board bonds readily with other materials and also with itself and has excellent sound & thermal insulator properties. For these reasons, P. V. C. Foam Boards are an ideal alternative to wood and can be used anywhere wood can.

Top

P.P. Flute Board

PP Flute Board is an extruded hollow profile consisting of two flat walls connected by vertical ribs. Sheets are produced by state of art profile extrusion plant in various attractive & eye catching colors. The main purpose of this sheets are Advertising, P.P. Flute Board re usable Boxes Etc…

The Standard Sizes are: 48” X 72” & 51” X 79” – Standard Colors White, Yellow, Red, Violet, Black and Grey.

Top
